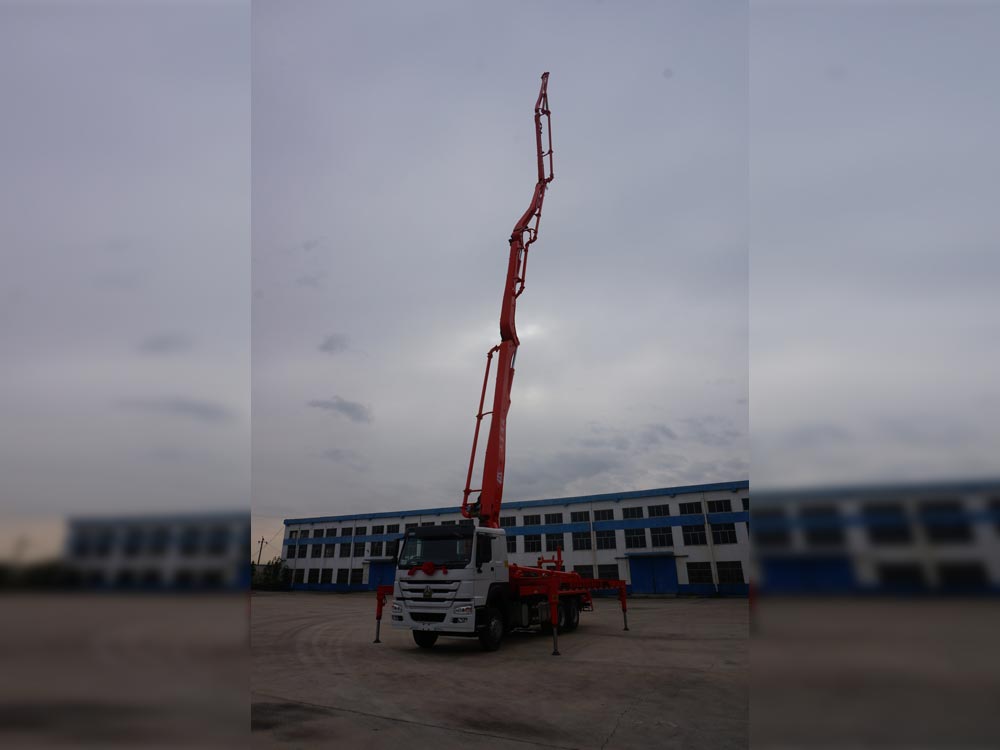

29M Concrete Boom Pump Truck
Technical Parameters of 29M Concrete Pump Truck Model H […]
Technical Parameters of 29M Concrete Pump Truck Model H […]
Technical Parameters of 29M Concrete Pump Truck
|
Model |
HDT5190HB-29/4 |
|
Pump Truck Parameters |
10100mm |
|
Total Width |
2460mm |
|
Total Height |
3700mm |
|
Self-Respect |
19630Kg |
Boom Outrigger Parameters
|
Vertical Height of Boom |
28.3m |
|
|
Horizontal Length of Boom |
17.9m |
|
|
Vertical Depth of Boom |
10m |
|
|
Length of First Section Arm |
7250mm |
|
|
Corner |
90° |
|
|
Length of Second Section Arm |
5750mm |
|
|
180° |
Corner |
|
|
Length of The Third Section Arm |
5750mm |
|
|
234° |
Corner |
|
|
Length of The Fourth Section Arm |
5620mm |
|
|
214° |
Corner |
|
|
Turntable Rotation Angle |
Any angle |
|
|
Width of Front Legs |
5600mm |
|
|
Width of Rear Outrigger |
4800mm |
|
|
Longitudinal Span of Front and Rear Legs |
6050mm |
|
Pumping System Parameters
|
Theoretical Displacement of Concrete |
92 m3/h |
60 m3/h |
||
|
Theoretical Pumping Pressure |
8 MPA |
7 MPA |
||
|
Inner Diameter of Delivery Cylinder |
230mm |
200mm |
||
|
Conveying Cylinder Stroke |
1600mm |
1400mm |
||
|
Hydraulic System |
Open |
|||
|
System Oil Pressure |
32 MPA |
|||
|
Conveying Pipe Diameter |
125mm |
|||
|
End Hose Length |
3000mm |
|||
|
End Hose Diameter |
125mm |
|||
Chassis parameters
|
Chassis Model |
Dongfeng |
|
Wheelbase |
5600mm |
|
Drive Form |
4×2 |
|
Engine Model |
Guangxi Yuchai |
|
Engine Power |
199Kw/2300rpm |
|
Emission Standards |
China Ⅴ |
|
Maximum Speed |
90Km/h |
