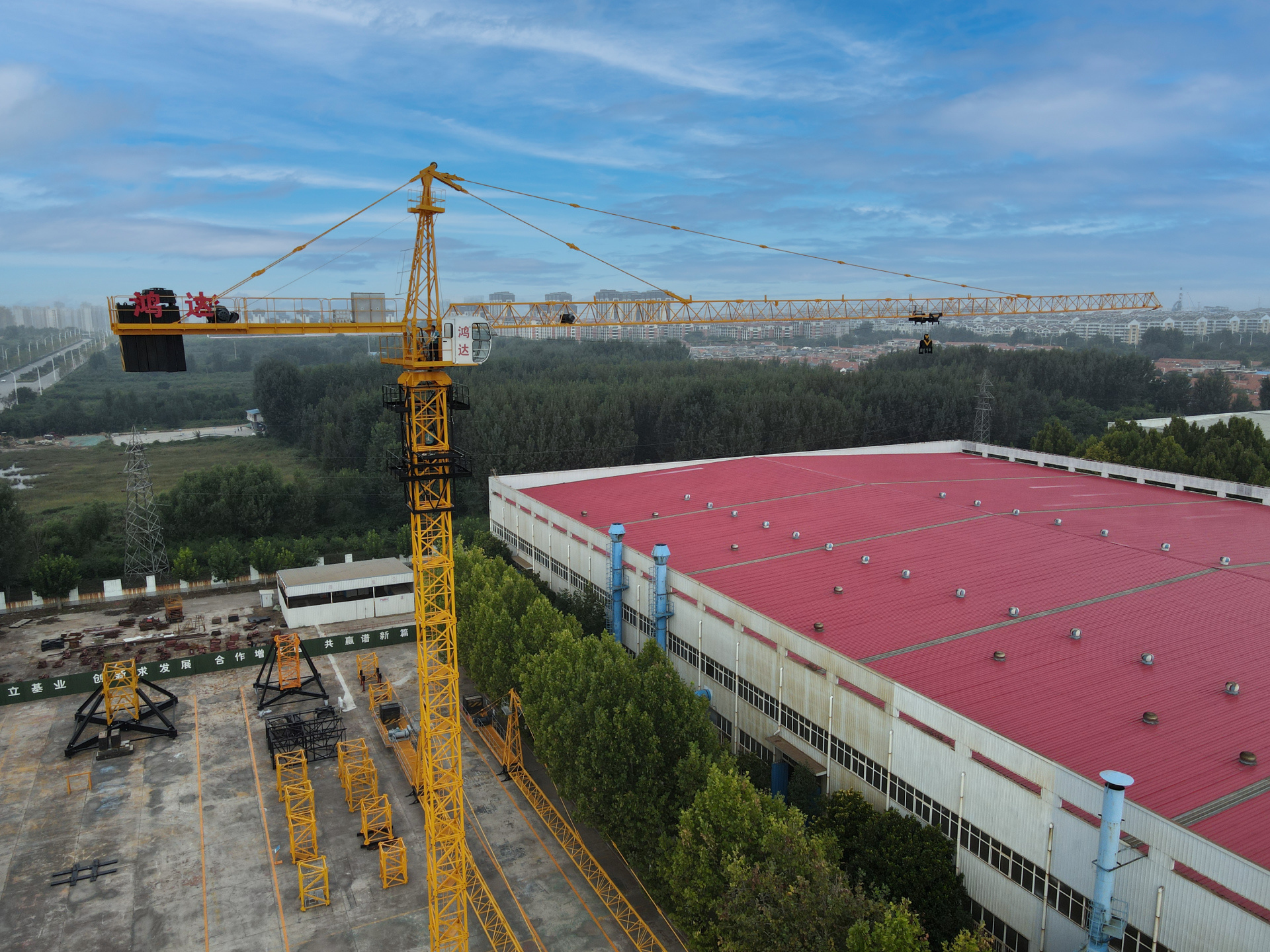

HT80 (6012) tower crane has a boom length of 60m, a boo […]
HT80 (6012) tower crane has a boom length :
60mBoom end lifting weight :
1.2tMaximum lifting capacity :
6tIndependent height :
40.5mMaximum height :
200mCombined boom :
60m, 54m, 48m, 42m , 36mHT80 (6012) tower crane has a boom length of 60m, a boom end lifting weight of 1.2t, a maximum lifting capacity of 6T, an independent height of 40.5M, a maximum height of 200m, and a combined boom of 60m, 54m, 48m, 42m and 36m. The lifting mechanism, slewing mechanism and luffing mechanism adopt frequency conversion speed regulation, and the standard section is 1.6m * 1,6m * 2.8m, which is common to Hongda HP80 and QTZ80 (6011).
1. The hoisting mechanism is a zigzag structure, with large diameter and short drum. The drum is equipped with broken line rope groove, front rope guide and good rope arrangement. Variable frequency speed regulation, stable starting and braking, slow in place and low speed, meeting the needs of high-rise buildings.
2. The slewing mechanism adopts 2 * 85nm torque motor soft start and variable frequency speed regulation, which can reverse the vehicle and be in place stably.
3. The luffing mechanism is driven by 3.3/2.2kw cone rotor brake motor (simple maintenance), variable frequency speed regulation, stable and reliable.
4. It is controlled by OMRON PLC in Japan, and the lifting, slewing and luffing frequency converters are special frequency converters for inverton tower crane; Stainless steel electric control cabinet and aviation socket are adopted, and air-conditioned cab is equipped.
Hongda HP100 (6013) flat head tower crane is 60m, the boom end lifting weight is 1.3t, the maximum lifting capacity is 6T, the independent height is 51m, the maximum height is 201m, and the combined……
Hongda HPA80 (6010) flat head tower crane is 60m, the boom end lifting weight is 1.06t, the maximum lifting capacity is 6T, the independent height is 41m, and the combined boom is 60m, 55m, 50m, 45m……
Hongda HP80 (6012) flat head tower crane is 60m, with boom end lifting weight of 1.2t, maximum lifting capacity of 6T, independent height of 40.5M and maximum height of 161m. The lifting mechanism i……
Hongda HP125 (6015) flat head tower crane is 60m, with boom end lifting weight of 1.5T, maximum lifting capacity of 8t, independent height of 46m and maximum height of 201m. The hoisting, slewing an……
1. The standard section adopts 1.6m*1.6m*2.8m high-strength bolts to connect the overall structure, which is common to most manufacturers’ standard sections on the market. The foundation legs ……
Brief Introduction of SC Series Construction Hoist The SC series of construction elevators are among the quality products of Hongda Group, which are widely used in industrial and civil construction,……
The fontal QTP250 (7025) inverter tower crane has a 70-meter boom, a 2.5-ton boom end, a maximum lifting capacity of 12 tons, an independent height of 60 meters, and a maximum height of 204 meters. ……
