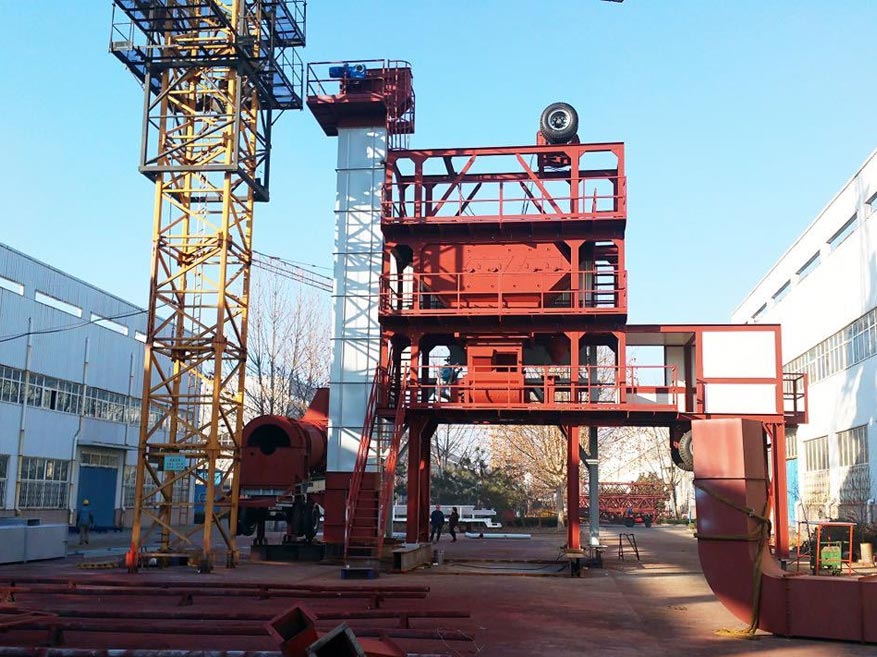

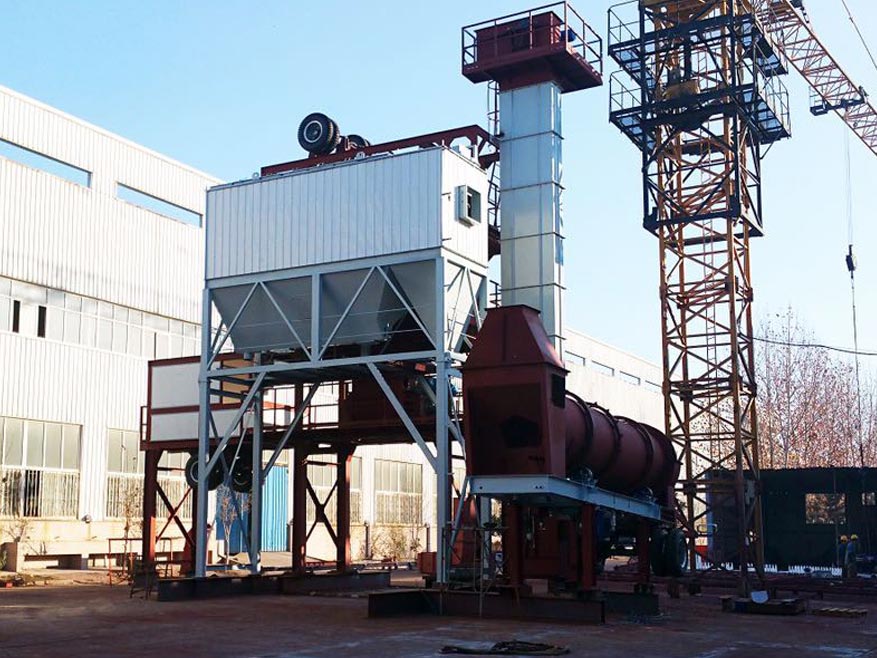

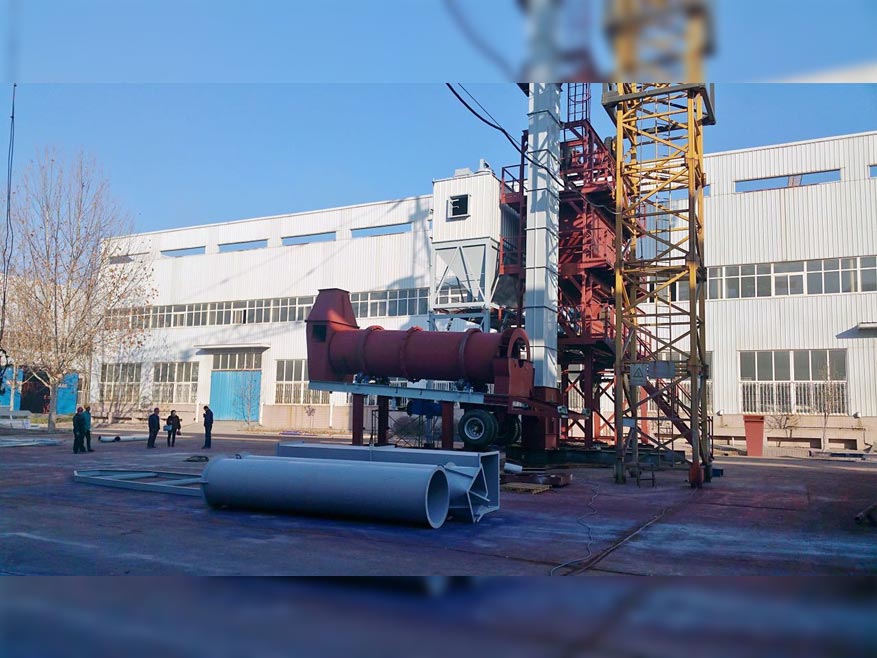

YLB Series Mobile Asphalt Mixing Plant
The detachable garbage truck is a kind of quasi-use garbage disposal equipment that uses a retractable hook arm to realize the self-loading and dumping of garbage in the garbage bin.
The detachable garbage truck is a kind of quasi-use garbage disposal equipment that uses a retractable hook arm to realize the self-loading and dumping of garbage in the garbage bin.
|
Model |
YLB500 |
YLB1000 |
|||
|
Theoretical Output(t/h) |
40 |
80 |
|||
|
Mixing Capacity(Kg/batch) |
500 |
1000 |
|||
|
Fuel |
Standard Configuration: Diesel、Heavy Oil（Optional：Natural Gas、Coal、etc.） |
||||
|
Fuel Consumption（kg/t） |
≤6.5 |
||||
|
Dust Collector Type |
Inertial Dust Collector + Backflush Bag Filter |
||||
|
Dust Emission Concentration（mg/Nm³） |
≤50 |
||||
|
Ambient Noise（dB(A)） |
≤85 |
||||
|
Operation Position Noise（dB(A)） |
≤70 |
||||
|
Vibrating Sieve |
4-Layer 7-Stage |
||||
|
Hoist |
Plate Chan |
||||
|
Operating System |
Manual/Semi-Automate/Fully Automatic |
||||
|
Weighing Accuracy |
Aggregate |
Dynamic |
≤±2.5% |
Static |
≤±0.4% |
|
Powder |
≤±2.5% |
≤±0.3% |
|||
|
Asphalt |
≤±2.5% |
≤0.2% |
|||
|
Number of Mobile Units (set) |
1 |
5 |
|||
|
Trailer Speed（km/h） |
≤40 |
||||
|
Area for Whole Plate (Length m*width m) |
41*22 |
33*25 |
|||
|
Total Installed Power（KW） |
180 |
260 |
|||
Note:
1. The theoretical output is the yield under standard working conditions ( standard atmospheric pressure, ambient temperature of 20℃, cold aggregate moisture content of 5%, hot aggregate temperature of 160℃, cycle time 5 seconds, finished material of medium size).
2. The above parameters are free of accessories (30T asphalt tank / heavy oil tank, 50T asphalt tank / heavy oil tank, 50T bottom-type ready mixture silo, 100T bottom-type ready mixture silo). If there are any changes, the actual products shall prevail.
